Mode :
CKX,CK1
Close Coupled Pump
CKX version
CK1 version
Features:
DIN24255 standardized close coupled pumps
Interchanged with hydraulic parts from Type XA
Two versions available:CK1 -casing without foot; CKX-casing with foot casted as one piece
The pump and the electric motor have independent shafts, thus allowing to use standard motors.
Fitted with mechanical seal.
Specifications:
Capacities to
350m
3
/h
Heads to
100 metres
Liquid temperature
15℃ up to +80℃
Operating speed
2900RPM
Pressure
PN 10, 16
Applications:
Water supply and transfer in municipal and industrial specifications
Air-conditioning systems
Pressure-boosting
Circulation in cooling and heating systems
Irrigation

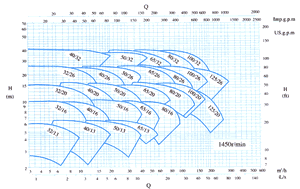

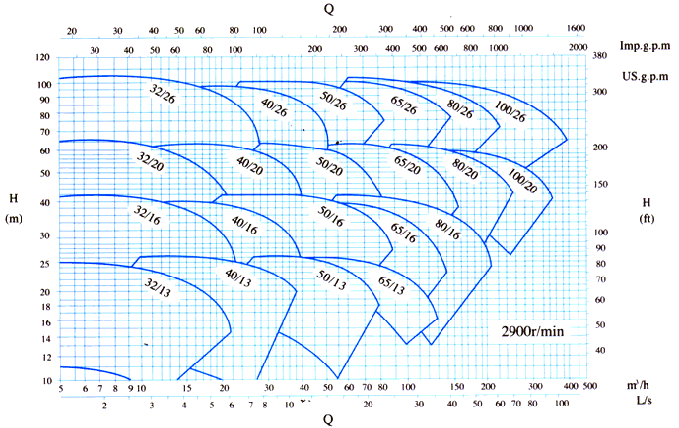

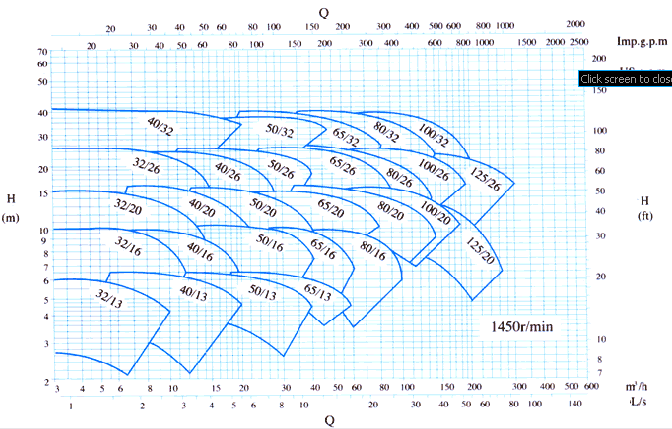

Performance range:
